U Type De-Canning Unit (Cutter) / U Type Single De-Canning Unit With Platform

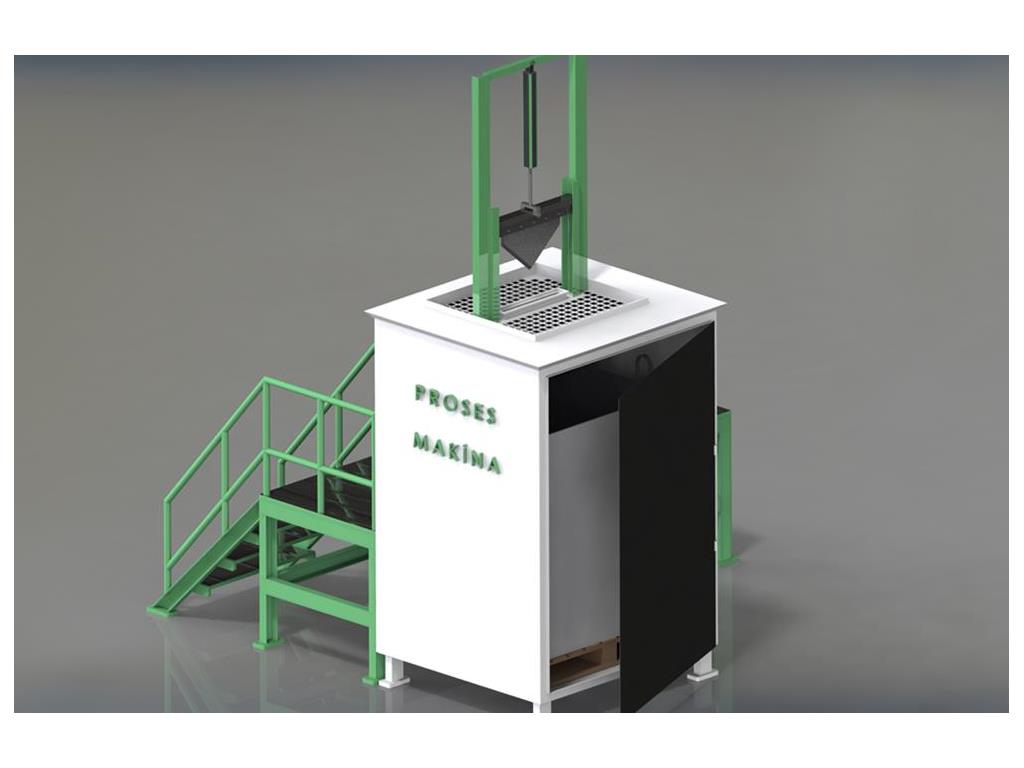

U Type Single De-Canning Unit With Platform

  • Technical specifications of platform type de-canning unit:

    Drive power hydraulic: 9,2kW

    V- cutting system

    Powerful suction

    Hardox 500- knife

    Contactless cutting process

    Expansion stages

    Net weight: 2400kg

    Power supply: 18,8kW

    Knife width: 430mm

    Openning width: max. 220mm

    Automatic cutting cycle

    Cutting area is secured by a light barrier

    Adjustable sensor for adjusting the knife stroke

    1 suction point in the upper cutting area

    1 suction point in the lower cutting area

    Workplace lighting

    Dimensions: 6100x5300x3970mm (WxLxH)

  • You can place your orders from the order form below..

U Type Single De-Canning Unit with Platform U Type Single De-Canning Unit with Platform U Type Single De-Canning Unit with Platform U Type Single De-Canning Unit with Platform U Type Single De-Canning Unit with Platform U Type Single De-Canning Unit with Platform U Type Single De-Canning Unit with Platform U Type Single De-Canning Unit with Platform
Video

Name product : U Type Single De-Canning Unit With Platform
