Press Type De-Canning Unit (Cutter) / Press Type De-canning (Cutter)

Press Type De-canning (Cutter)

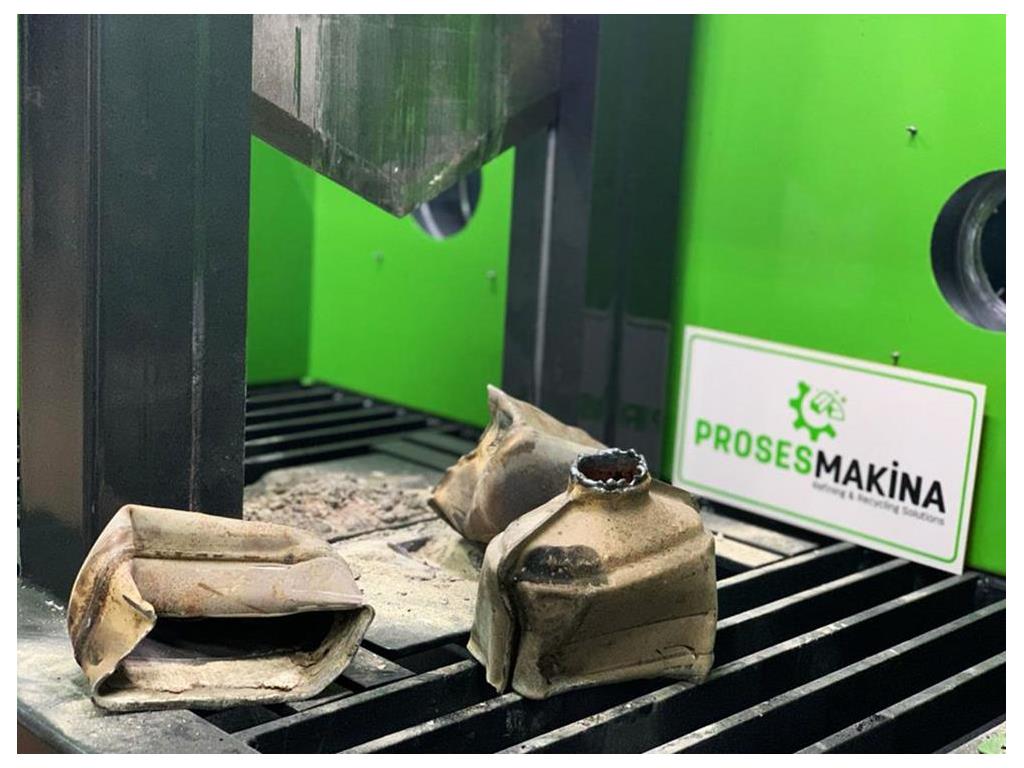

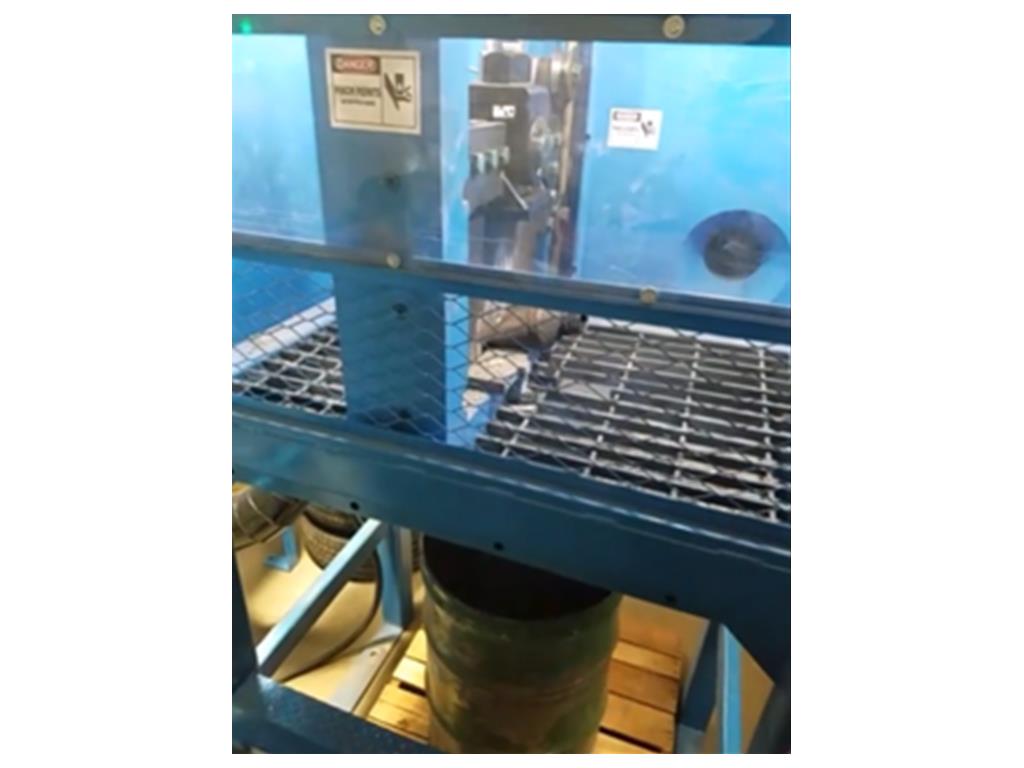

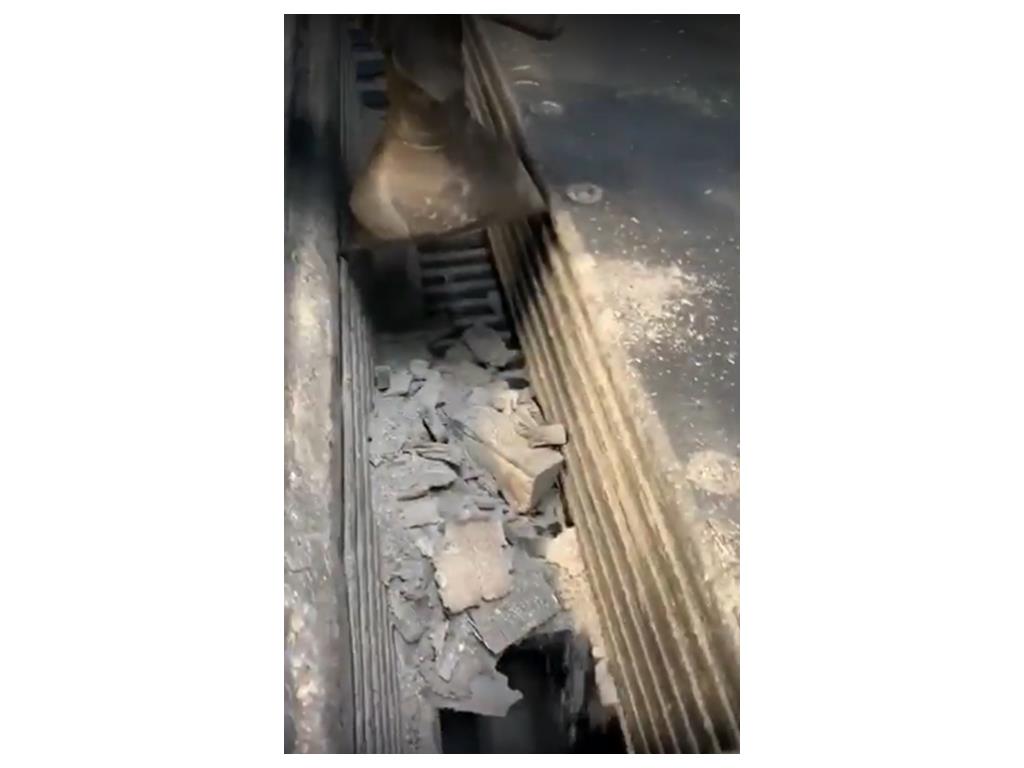

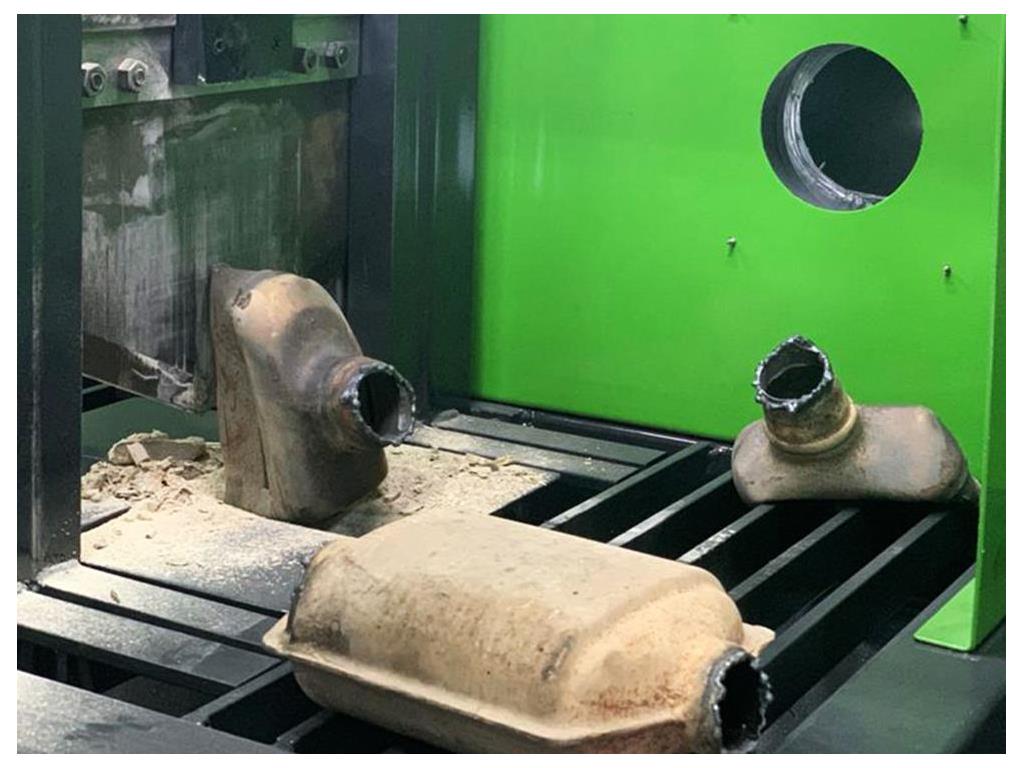

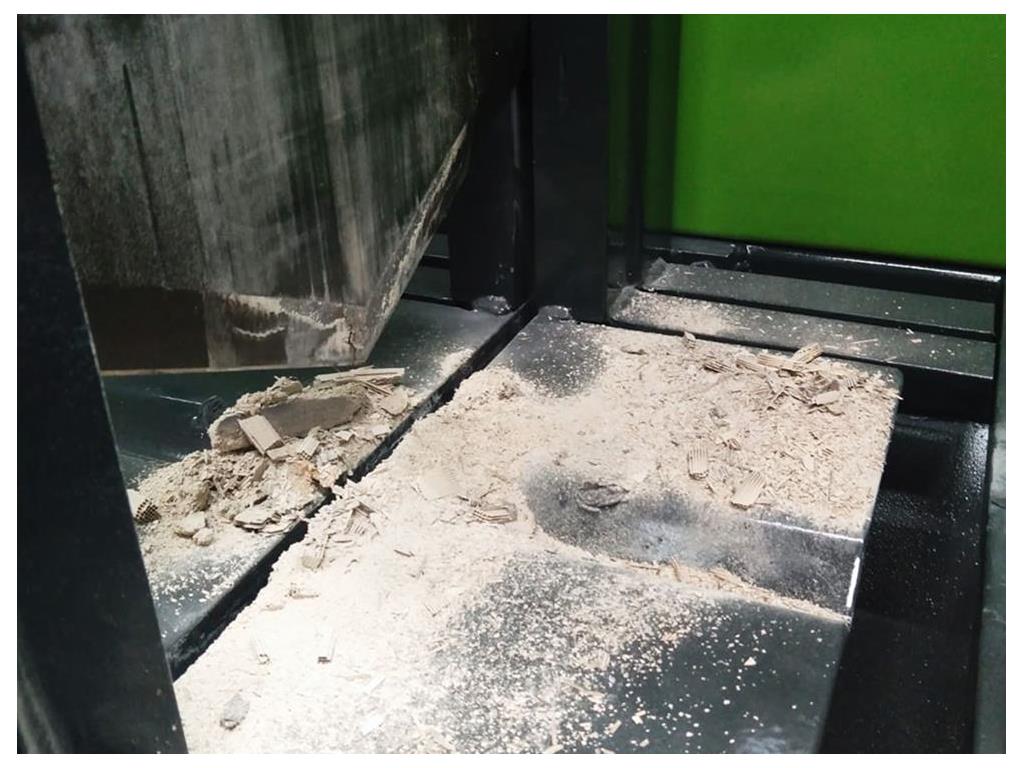

  • Press Type De-Canning Unit was designed for optimum safety workplace by Proses Makina’s engineer team. The system included a single de-canning unit with safety door and a single press machine for squeeze the cutted catalytic converter parts. Common use style for crush the scrap for empty the scraps is using the up side of guillotine. In this system, Proses Makina provide two separate system for cutting and squeezing. The pictures of press type de-canning unit can be seen below.

    Technical specifications:

    Power supply for hydraulic: 9,2kW

    Knife width: 430mm

    Opening width: 220mm (Maximum)

    Automatic cutting cycle

    Cutting area is secured by a light barrier

    Suction points in upper and lower cutting area

    Revision door on the back of the platform

    Workplace lighting

    Sliding door (Optional)

    Hydraulic Press Dimensions (W x L x H): 900 x 1750 x 2200 mm

    Press power: 10ton

    Power Supply for press machine: 3-phase, 400v, 50/60Hz, 16A

    PLC automation system (Optional)

    Door security system  (Optional)

  • You can place your orders from the order form below..


Name product : Press Type De-canning (Cutter)
